Teaching LLMs new UI tricks

Chat interfaces are by far the most popular way of interacting with LLMs today. And they're fairly simple to build: all you need is a page with a single input to accept user messages and a place to render the LLM's response. Once this is done, the next bit of complexity you usually want to introduce is streaming responses and rendering Markdown. And then you basically have a ChatGPT clone with just a thin wrapper around the API.

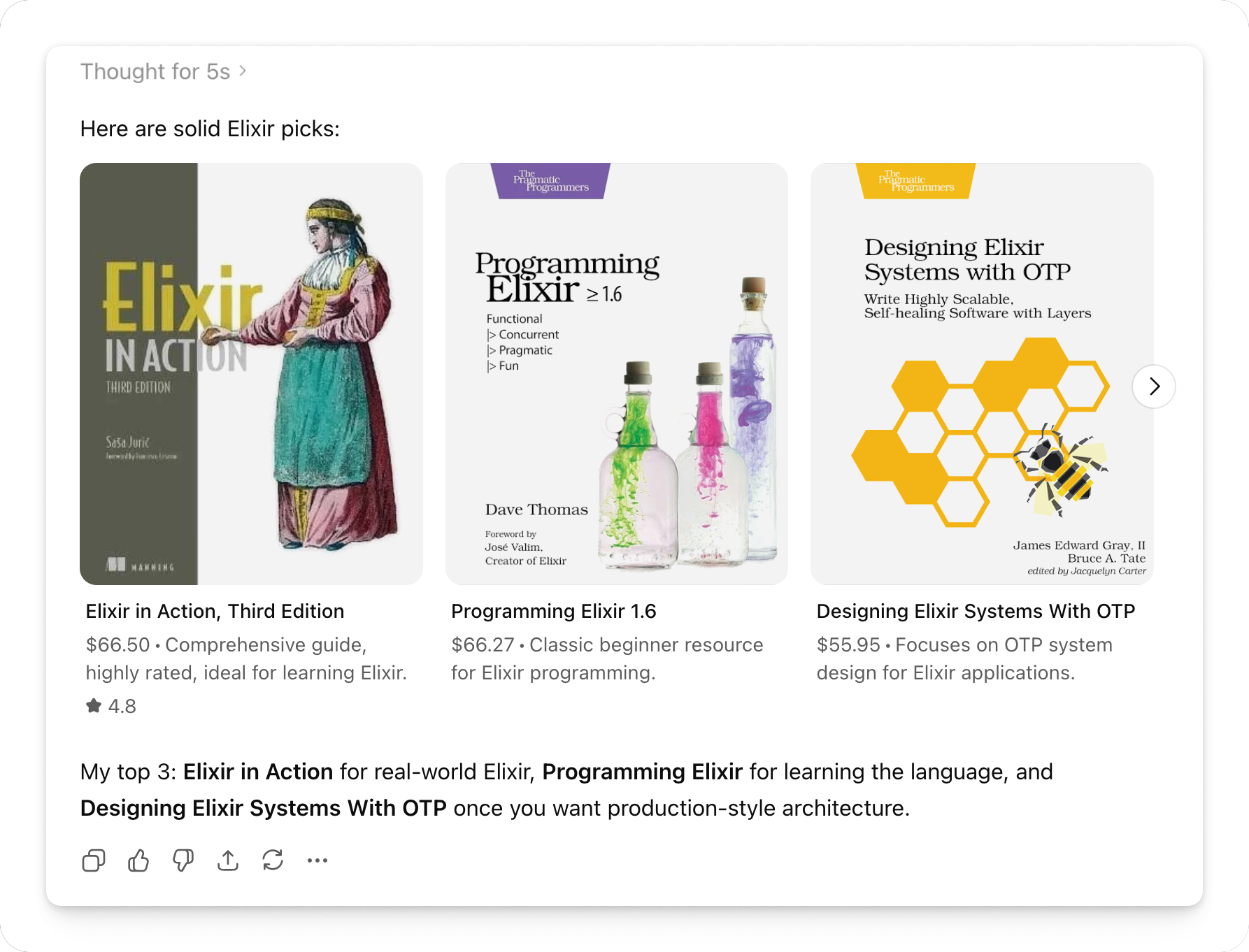

But let's take a closer look at ChatGPT. It does a little more than simple Markdown. Take this product carousel, for example:

This is no simple Markdown! How is this done and, most importantly, how can we build something similar? Let's dig in!

Reverse Engineering

Naturally, the first place to look to understand what's going on under the hood is the browser developer tools. In this case, the ChatGPT frontend receives responses from the server as a stream of Server-Sent Events. If we stitch them together, this is what a complete message looks like:

Here are solid Elixir picks:

products{
"selections":[
  ["turn774721product1,turn774721product4","Programming Elixir 1.6"],
  ["turn774721product5","Elixir in Action, Third Edition"],
  ["turn774721product0,turn774721product6","Programming Phoenix LiveView"],
  ["turn774721product2","Learning Elixir"],
  ["turn774721product3","Introducing Elixir"]
],
"tags":[
  "Best starter",
  "Deep practical",
  "Phoenix/LiveView",
  "Beginner ebook",
  "Cheap intro"
  ]
}

I’d start with **Programming Elixir 1.6**, then **Elixir in Action**. For web
apps, grab **Programming Phoenix LiveView** after you know the basics.

We can see some normal-looking markdown text, but that’s not all. Under the hood, the carousel is JSON delimited by the U+E200, U+E202, and U+E201 symbols. These are special Unicode characters with no defined meaning, and they’re being assigned custom meaning. In this case, as we can see, they serve as delimiters for custom UI element syntax.

But all of this only tells us how the carousel is sent over the wire, not necessarily how LLMs emit it internally. Still, I think it's fairly close. The core idea here is that we're not limited to pure Markdown, and we can embed custom UI elements directly into the model's response.

Let's see if we can build something similar, using Phoenix LiveView, of course.

Establishing baseline

Quick, build a ChatGPT clone! Even though we're primarily interested in adding fancy UI elements, we need some baseline functionality to build on. For this, let's quickly put together a LiveView chat page that lets us talk to an LLM. I will only show the LiveView module here, as that's where all the interesting things are. You can check the whole app on github.

Let's start with the mount callback. We begin by creating a form for our chat input and an empty messages stream:

defmodule BigTalkWeb.ChatLive do
  use BigTalkWeb, :live_view

  @impl true
  def mount(_params, _session, socket) do
    {:ok,
     socket
     |> assign(:form, to_form(%{"message" => ""}, as: :chat))
     |> assign(:previous_response_id, nil)
     |> stream(:messages, [])}
  end
end

When a user submits a message, it kicks off a send_message event callback, which adds the user message and an empty assistant response message to messages. We put a copy of this empty response into the inflight_response assign. Finally, we spawn an async task that sends a request to the OpenAI API and sends each streaming response delta back to the LiveView process. This is done through a combination of excellent Req and ServerSentEvents packages.

@impl true
def handle_event("send_message", %{"chat" => chat_params}, socket) do
  message =
    chat_params
    |> Map.get("message", "")
    |> String.trim()

  if message == "" do
    {:noreply, assign(socket, :form, to_form(chat_params, as: :chat))}
  else
    id = System.unique_integer([:positive])

    user_message = %{
      id: "user-#{id}",
      role: :user,
      name: "You",
      body: message
    }

    assistant_message = %{
      id: "assistant-#{id}",
      role: :assistant,
      name: "Big Talk",
      body: ""
    }

    previous_response_id = socket.assigns.previous_response_id
    view_pid = self()

    {:noreply,
      socket
      |> stream_insert(:messages, user_message)
      |> stream_insert(:messages, assistant_message)
      |> assign(:inflight_response, assistant_message)
      |> start_async(:generate_response, fn ->
        %{
          status: 200,
          body: body
        } =
          %{
            input: message,
            model: "gpt-5.4-nano",
            reasoning: %{effort: "none"},
            stream: true,
            previous_response_id: previous_response_id
          }
          |> Openai.responses(fn delta ->
            send(view_pid, {:delta, delta})
          end)
          |> Req.request!()

        body
      end)
      |> assign(:form, to_form(%{"message" => ""}, as: :chat))}
  end
end

On each received delta, we append it directly to the inflight_response message and put it into messages. Thanks to the LiveView streaming magic, the message will be updated in place!

@impl true
def handle_info({:delta, delta}, socket) do
  inflight_response = socket.assigns.inflight_response
  updated = %{inflight_response | body: inflight_response.body <> delta}

  socket =
    socket
    |> assign(:inflight_response, updated)
    |> stream_insert(:messages, updated)

  {:noreply, socket}
end

Finally, when the async task completes, we mark the response as complete and set inflight_response to nil:

@impl true
def handle_async(
      :generate_response,
      {:ok, %{
        "id" => response_id,
        "output" => [%{"content" => [%{"text" => output}]}]
      }},
      socket
    ) do
  final_message = Map.put(socket.assigns.inflight_response, :body, output)

  socket =
    socket
    |> assign(:previous_response_id, response_id)
    |> assign(:inflight_response, nil)
    |> stream_insert(:messages, final_message)

  {:noreply, socket}
end

You might be wondering about previous_response_id. This is what allows us to avoid sending the whole message history to the API on each turn and instead piggyback on OpenAI's Responses API functionality.

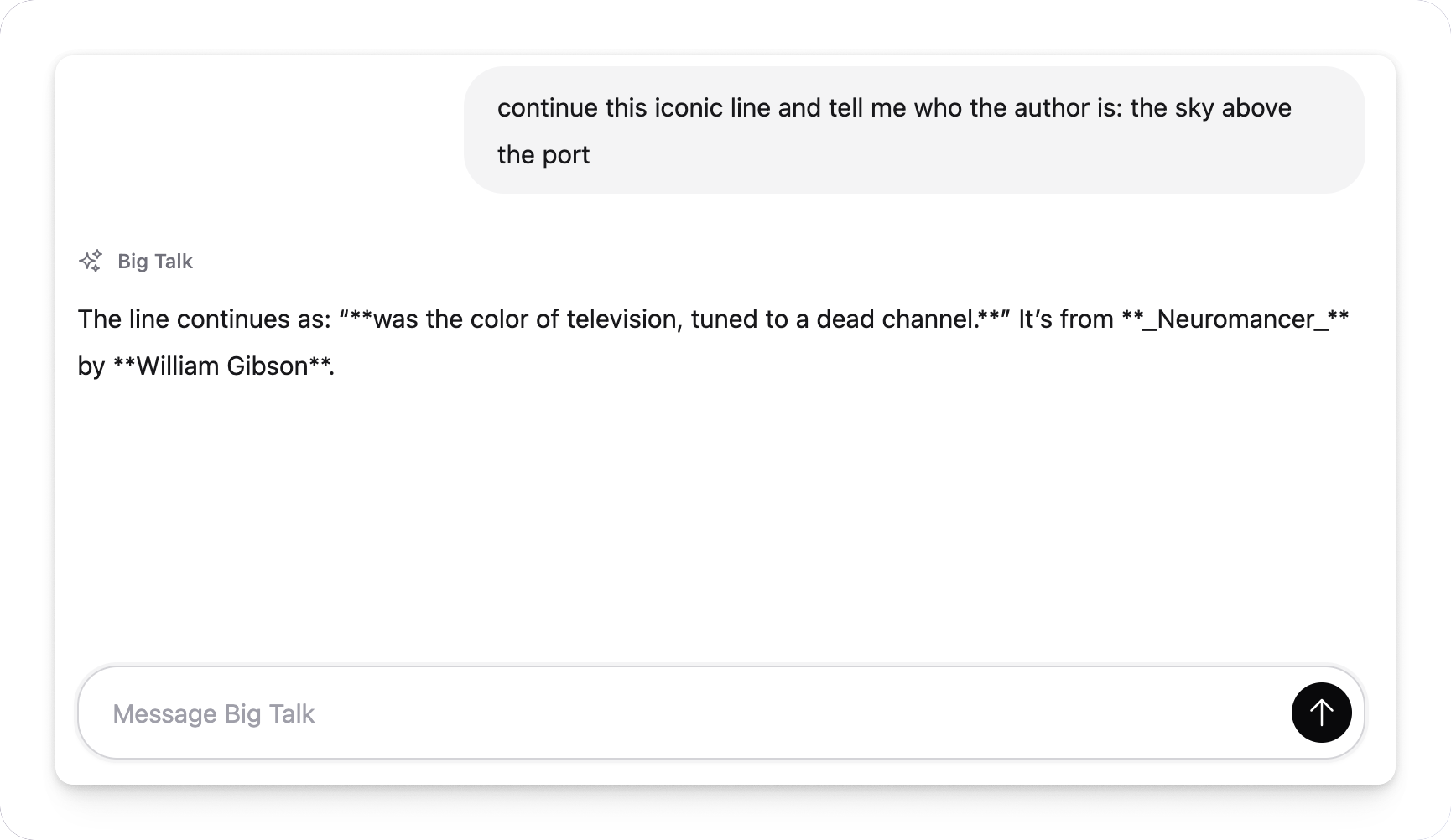

We have a functioning chat now!

Handling Markdown

Our chat only handles plain text for now. We'll need to teach it to render Markdown. Even more excitingly, we'll need to make it stream! Luckily, the MDEx library supports streaming.

First of all, we'll swap body to a MDEx document struct:

  assistant_message = %{
      id: "assistant-#{id}",
      role: :assistant,
      name: "Big Talk",
-        body: ""
+        body: MDEx.new(streaming: true)
    }

On each delta, we append it to the struct:

@impl true
def handle_info({:delta, delta}, socket) do
  inflight_response = socket.assigns.inflight_response
-    updated = %{inflight_response | body: inflight_response.body <> delta}
+    updated = %{inflight_response | body: MDEx.Document.put_markdown(inflight_response.body, delta)}

And then let MDEx convert partially parsed Markdown to raw HTML:

             <.icon name="hero-sparkles" class="size-4" />
             <span>{message.name}</span>
           </div>
-          <p>{message.body}</p>
+          <article>
+            {MDEx.to_html!(message.body) |> raw()}
+          </article>
        </article>
    </div>
</div>

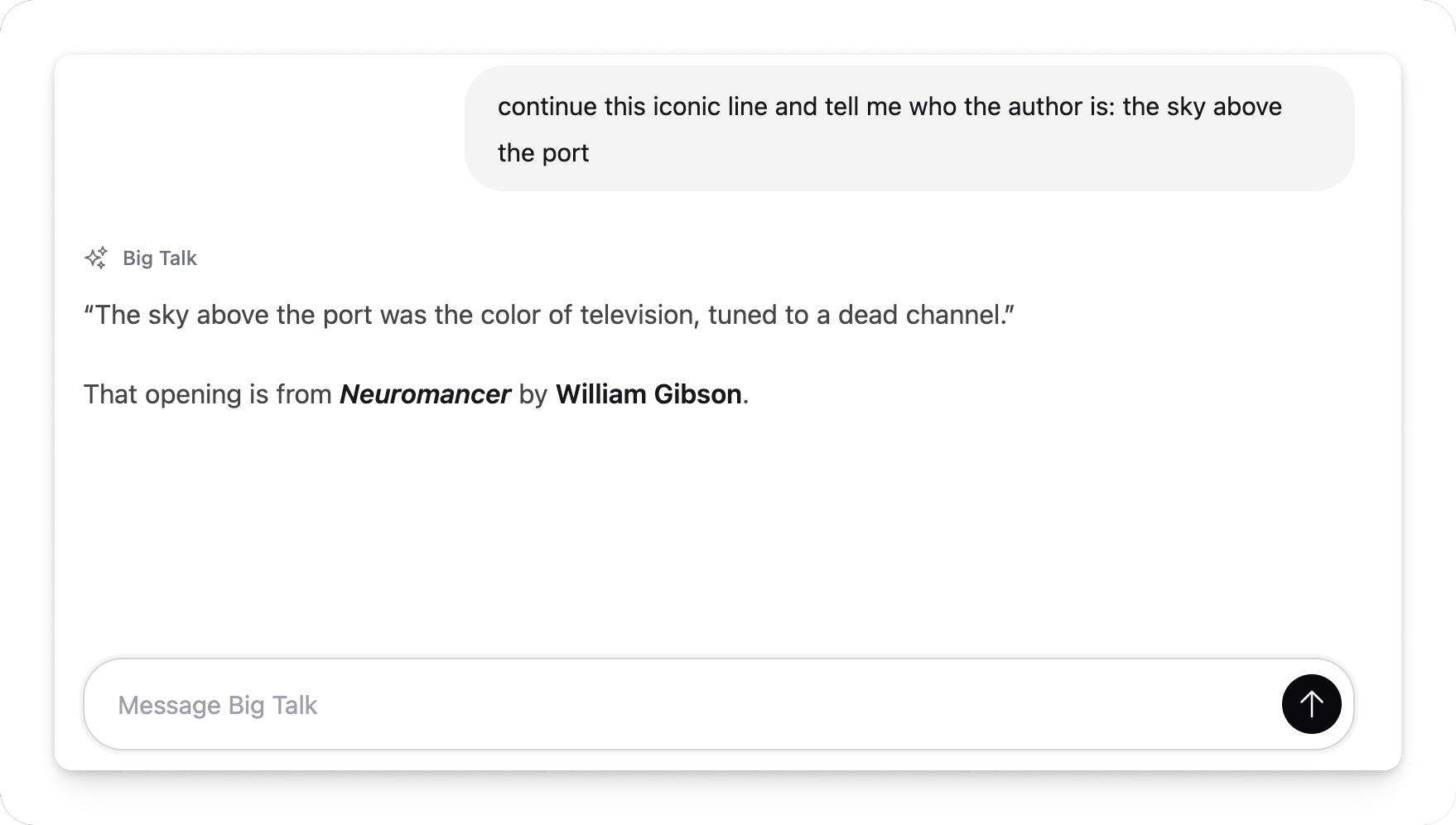

Markdown streaming ready!

Rich UI

Now it's time to make our chat more exciting. It all started with a product carousel, but for this exercise, I want to build something simpler. How about quick replies? Something like this:

How do we do this? One way to extend Markdown syntax is to mix HTML into it. HTML, in turn, can be extended to support custom elements. So here's the plan: we're going to define a <quick-reply>Text</quick-reply> custom element for our app and then tell the model that it can use it.

We'll start by updating the prompt in the generate_response async task:

|> start_async(:generate_response, fn ->
  %{
    status: 200,
    body: body
  } =
    %{
      input: message,
      model: "gpt-5.4-nano",
      reasoning: %{effort: "none"},
      stream: true,
      previous_response_id: previous_response_id,
      instructions: """
      You have access to the following custom syntax. ALWAYS use
      it to the fullest advantage to provide delightful
      rich UI to the user.

      # Quick Reply

      Use this custom tag to suggest a concise reply
      the user can send next. Use multiple quick replies
      and keep each one short: 2-4 words.

      ## Example

      <quick-reply>Tell me more</quick-reply>
      """
    }
    |> Openai.responses(fn delta -> send(view_pid, {:delta, delta}) end)
    |> Req.request!()

  body
end)

Then, we need to make sure MDEx is friendly towards our custom tag. This is important because, by default, MDEx is rightfully cautious and you need to explicitly allow certain tags to pass through. We're going to replace a simple MDEx.new(streaming: true) with a more sophisticated setup:

defmodule BigTalk.Markdown do
  def parser() do
    MDEx.new(
      streaming: true,
      render: [unsafe: true],
      sanitize: sanitize_options()
    )
  end

  def sanitize_options() do
    MDEx.Document.default_sanitize_options()
    |> Keyword.merge(add_tags: ["quick-reply"])
  end
end

There's not much happening here: we allow MDEx to render HTML and add quick-reply to the list of allowed tags.

Okay, now we can reasonably expect the quick-reply tag to make it all the way to the browser. Now we just need to define a custom element in our app.js so that the browser knows how to render it.

class QuickReply extends HTMLElement {
  constructor() {
    super()
    this.handleClick = this.handleClick.bind(this)
  }

  connectedCallback() {
    this.addEventListener("click", this.handleClick)
  }

  disconnectedCallback() {
    this.removeEventListener("click", this.handleClick)
  }

  handleClick(event) {
    event.preventDefault()
    this.submitReply()
  }

  submitReply() {
    const message = this.textContent.trim()
    const form = document.getElementById("chat-composer-form")
    const input = form?.querySelector("[name='chat[message]']")

    if (!message || !form || !input) {
      return
    }

    input.value = message
    input.dispatchEvent(new Event("input", {bubbles: true}))
    input.dispatchEvent(new Event("change", {bubbles: true}))

    if (form.requestSubmit) {
      form.requestSubmit()
    } else {
      form.dispatchEvent(new SubmitEvent("submit",
        {bubbles: true, cancelable: true}
      ))
    }
  }
}

if (!customElements.get("quick-reply")) {
  customElements.define("quick-reply", QuickReply)
}

And add some styling:

quick-reply {
  @apply my-1 mr-1.5 inline-flex max-w-full cursor-pointer select-none
  items-center whitespace-nowrap rounded-full border border-zinc-300
  bg-white px-3 py-2 align-baseline text-sm leading-tight font-medium
  text-zinc-700 no-underline shadow-sm transition;
}

quick-reply:hover {
  @apply -translate-y-px border-zinc-400
  bg-zinc-50 text-zinc-950 shadow-md;
}

quick-reply:active {
  @apply translate-y-0 shadow-sm;
}

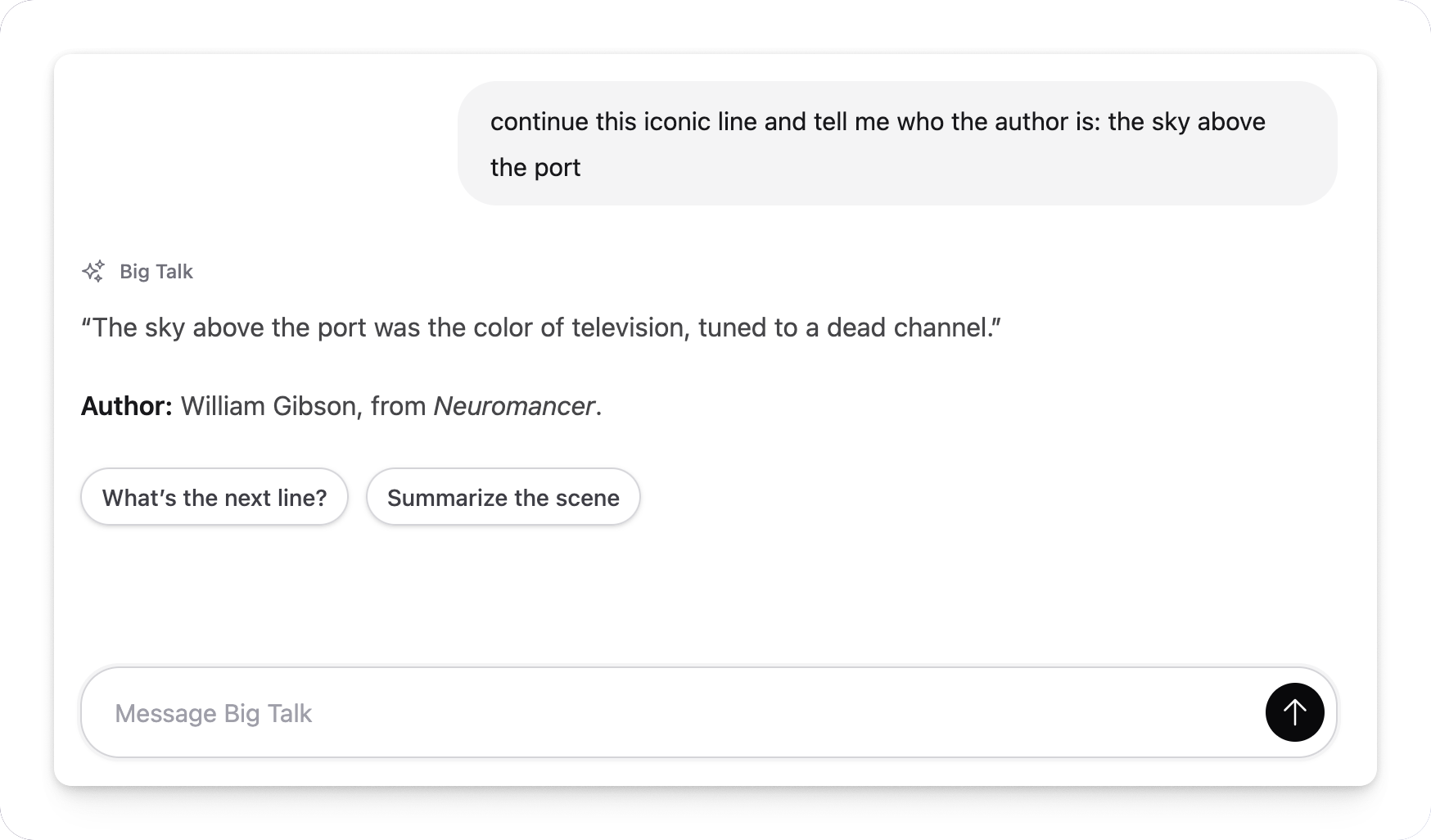

Let's test it:

It works! But I know what you're thinking: is the model smart enough to consistently use these custom elements, especially more complex ones? I haven't done comprehensive research, but after playing with it for a while, my gut feeling is that yes, models are pretty competent at that, especially bigger ones. So if you're building an AI chat and want to give the model the freedom to use more expressive UI elements, consider equipping it with a menu of custom HTML elements.

Conclusion

We started by examining ChatGPT’s fancy UI and made some guesses about how it might be working under the hood. We implemented our own Markdown extension using a custom HTML element and made it available for the model to use. We now have a neat little trick in our arsenal that we can build upon further.
